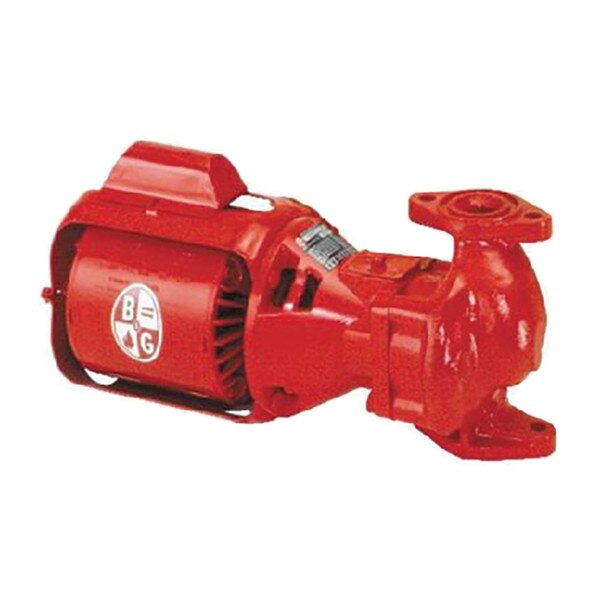

Bell & Gossett Single Phase Circulating Pump - 1/6 H.P., 115V, 1.9 Amp.
Bell & Gossett Series 100 Inline Mounted Circulating Pump.
• Less flanges
• Maximum head 12’
• 0-40 GPM flow range
• Maximum working pressure; 125 psi
• Maximum working temperature; 225°F
• Freight charges apply
• For California Residents please see Prop 65 Warnings
• Less flanges
• Maximum head 12’
• 0-40 GPM flow range
• Maximum working pressure; 125 psi
• Maximum working temperature; 225°F
• Freight charges apply
• For California Residents please see Prop 65 Warnings
| Manufacture Item Number | 102210 |
| UPC | 683328022109 |
| Weight | 25 |
| Package Dimensions (in) | 15.375 x 6 x 8.5 |
| Package Quantity | EACH |
| Amp | 1.9 |
| H.P. | 1/6 |
| Phase | 1 |
| Flange to Flange (in) | 8-1/2 |
| Flange Size (in) | 1, 1-1/4, 1-1/2 |
| L X W X H (in) | 18 X 10.2 X 8 |
| Overall Length (in) | 15-3/8 |
| Wgt. (lbs) | 28 |
Details
Bell & Gossett Series 100 Inline Mounted Circulating Pump.
• Less flanges
• Maximum head 12’
• 0-40 GPM flow range
• Maximum working pressure; 125 psi
• Maximum working temperature; 225°F
• Freight charges apply
• For California Residents please see Prop 65 Warnings
• Less flanges
• Maximum head 12’
• 0-40 GPM flow range
• Maximum working pressure; 125 psi
• Maximum working temperature; 225°F
• Freight charges apply
• For California Residents please see Prop 65 Warnings
