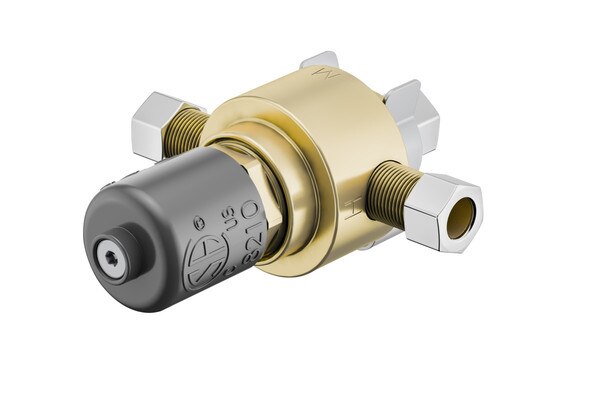

Symmons MaxLine Thermostatic Mixing Valve - 3/8" Compression
Symmons MaxLine Thermostatic Mixing Valve
• 3/8" compression connections
• Integral checks
• Stainless steel strainers for protection against suspended particles in supply lines
• Thermal cartridge
• Vandal resistant
• Minimum flow rate 0.25 gpm (0.95L/min)
• HOT inlet range 120°F - 180°F (48.9°C - 82.2°C)
• COLD inlet range 39°F - 80°F (3.9°C - 26.7°C)
• Temperature control range: 59°F - 115°F (15°C - 46°C)
• Minimum supply pressure: 20 psi (138 kPa)
• Maximum supply pressure: 125 psi (862 kPa)
• Inlet to outlet temperature differential: 10°F (5.55°C)
• For California Residents please see Prop 65 Warnings
| Manufacture Item Number | 8210CK |
| Package Quantity | EACH |
Details
Symmons MaxLine Thermostatic Mixing Valve
• 3/8" compression connections
• Integral checks
• Stainless steel strainers for protection against suspended particles in supply lines
• Thermal cartridge
• Vandal resistant
• Minimum flow rate 0.25 gpm (0.95L/min)
• HOT inlet range 120°F - 180°F (48.9°C - 82.2°C)
• COLD inlet range 39°F - 80°F (3.9°C - 26.7°C)
• Temperature control range: 59°F - 115°F (15°C - 46°C)
• Minimum supply pressure: 20 psi (138 kPa)
• Maximum supply pressure: 125 psi (862 kPa)
• Inlet to outlet temperature differential: 10°F (5.55°C)
• For California Residents please see Prop 65 Warnings
