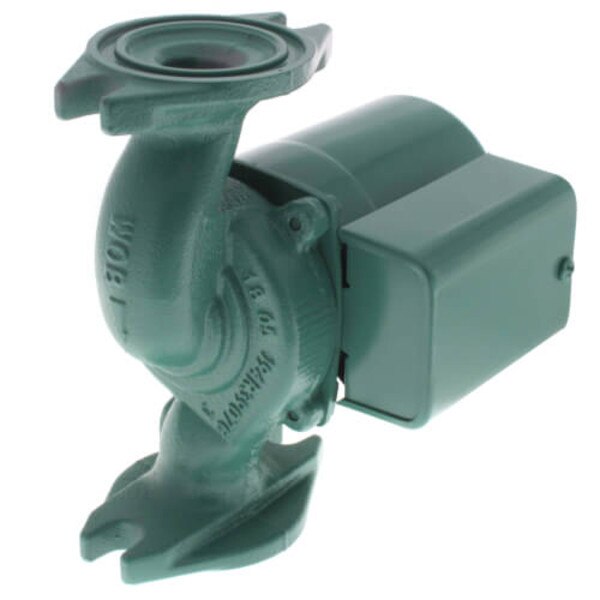

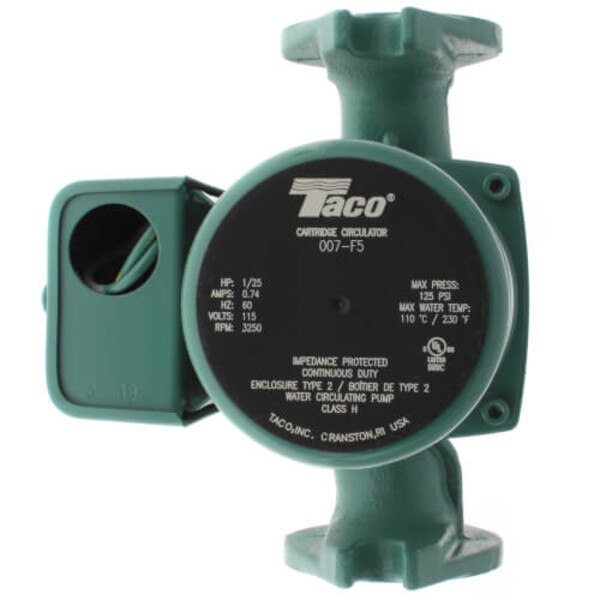

Taco 00 Series Single Phase Circulating Pump - 1/25HP, 115V, Cast Iron
The Taco 007 is a cartridge style, maintenance free, wet-rotor, in-line, single stage circulator pump. It is designed for quiet operation in Hydronic heating, Radiant heating, Hydro-Air fan coils, Indirect water heaters, Chilled fresh water, and Domestic Water Recirculation systems.
• Quiet, efficient operation
• Standard high-capacity output-compact design
• Direct drive - Low power consumption
• Unique replaceable cartridge design - Field serviceable
• Self-lubricating
• No mechanical seal
• Unmatched reliability - Maintenance free
• Cast iron construction
• .71 amps
• 1/25 HP
• 3250 RPM
• 115 volts
• 60 Hertz
• 1 phase
• 125 PSI max pressure
• Head range: 0-10’, 10’ max head
• Flow range: 0-23 GPM, 23 GPM max flow
• Temperature range: 40°F to 230°F
• Connection sizes: 3/4", 1", 1-1/4", 1-1/2" flanged
• For California Residents please see Prop 65 Warnings
• Quiet, efficient operation
• Standard high-capacity output-compact design
• Direct drive - Low power consumption
• Unique replaceable cartridge design - Field serviceable
• Self-lubricating
• No mechanical seal
• Unmatched reliability - Maintenance free
• Cast iron construction
• .71 amps
• 1/25 HP
• 3250 RPM
• 115 volts
• 60 Hertz
• 1 phase
• 125 PSI max pressure
• Head range: 0-10’, 10’ max head
• Flow range: 0-23 GPM, 23 GPM max flow
• Temperature range: 40°F to 230°F
• Connection sizes: 3/4", 1", 1-1/4", 1-1/2" flanged
• For California Residents please see Prop 65 Warnings
| Manufacture Item Number | 007-F5 |
| UPC | 190145167130 |
| Weight | 6.82 |
| Package Quantity | EACH |
Details
