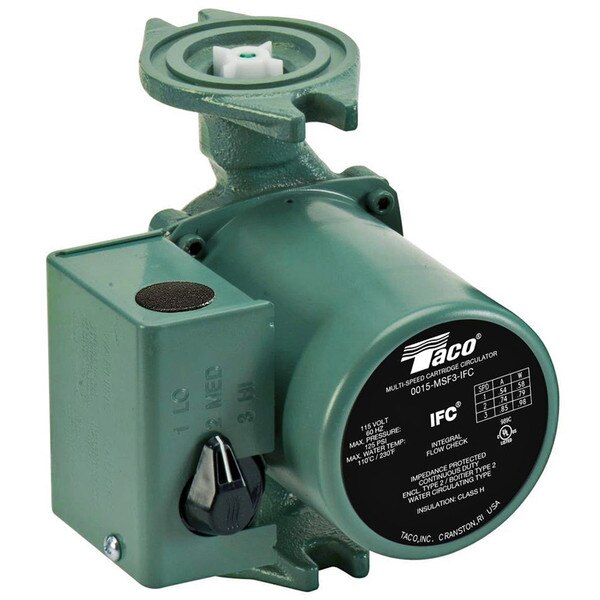

Taco Single Phase Circulating Pump - 1/20 H.P., 115V, 60 Hz., 3250 RPM
Everything that goes into the 0015-IFC 3-Speed - from the powerful, high performance motor to the durable 3-speed switch - says "heavy duty". With the highest starting torque in its class, this circulator delivers the performance and fine tuning capabilities sure to satisfy the most demanding hydronics system installer.
The 3-speed circulators feature a removable, uni-body Integral Flow Check (IFC®) that maximizes flow, as well as prevents gravity flow, even in the tallest buildings. Wiring is a snap thanks to an extra roomy capacitor box and convenient dual electrical knock-outs.
The 0015 3-Speed pump is specifically designed for the wide range of flow and head requirements of today’s hydronic heating systems. Its’ 3-Speed switching capability provides fine tuning control to match a wide combination of tube diameters and length of runs. The 0015 3-Speed is a direct replacement for the Grundfos UPS 15-58 3-Speed. The 0015 delivers the highest starting torque in its class and includes a removable, uni-body Integral Flow Check (IFC® ) that prevents gravity flow, reduces installation costs and improves pump performance.
• 3-Speed Switch.
• Fine tune to system requirements.
• Highest performance & starting torque in class.
• Heavy duty construction for longer life.
• Removable high-flow Integral Flow Check (IFC).
• Replaceable cartridge design.
• Self lubricating, no mechanical seal.
• Wide range of applications.
• Cast Iron, flanged construction.
Replacement Parts List:
• Casing O-Ring: 00R-001RP
• Flange Gasket Set: 007-007RP
• Capacitor or PC Board: 007-002RP
• Cartridge Assembly Complete: 00R-005RP
• Valve Assembly Trans/Relay: 0010-025RP
• HP: 1/20
• Cast Iron
• Hertz: 60
• Volts: 115
• RPM: 3250
• Less Flanges
• Max head: 17’
• Max flow: 18 gpm
• Max pressure: 125 psi
• For California Residents please see Prop 65 Warnings
The 3-speed circulators feature a removable, uni-body Integral Flow Check (IFC®) that maximizes flow, as well as prevents gravity flow, even in the tallest buildings. Wiring is a snap thanks to an extra roomy capacitor box and convenient dual electrical knock-outs.
The 0015 3-Speed pump is specifically designed for the wide range of flow and head requirements of today’s hydronic heating systems. Its’ 3-Speed switching capability provides fine tuning control to match a wide combination of tube diameters and length of runs. The 0015 3-Speed is a direct replacement for the Grundfos UPS 15-58 3-Speed. The 0015 delivers the highest starting torque in its class and includes a removable, uni-body Integral Flow Check (IFC® ) that prevents gravity flow, reduces installation costs and improves pump performance.
• 3-Speed Switch.
• Fine tune to system requirements.
• Highest performance & starting torque in class.
• Heavy duty construction for longer life.
• Removable high-flow Integral Flow Check (IFC).
• Replaceable cartridge design.
• Self lubricating, no mechanical seal.
• Wide range of applications.
• Cast Iron, flanged construction.
Replacement Parts List:
• Casing O-Ring: 00R-001RP
• Flange Gasket Set: 007-007RP
• Capacitor or PC Board: 007-002RP
• Cartridge Assembly Complete: 00R-005RP
• Valve Assembly Trans/Relay: 0010-025RP
• HP: 1/20
• Cast Iron
• Hertz: 60
• Volts: 115
• RPM: 3250
• Less Flanges
• Max head: 17’
• Max flow: 18 gpm
• Max pressure: 125 psi
• For California Residents please see Prop 65 Warnings
| Manufacture Item Number | 0015-MSF3-IFC |
| UPC | 687752043334 |
| Weight | 7.56 |
| Package Quantity | EACH |
